Winnebago Revel Floorplan

The Winnebago Revel is available in the 44E floorplan, offering superior off-road and off-grid efficiency!

Get Internet Price

By requesting a price quote or seeking information from Lichtsinn RV, you agree to receive information periodically about ongoing specials. Should you no longer wish to receive information, instructions for removal are included with every email received. Lichtsinn RV will not release your information to third parties.

The Winnebago Revel is available with one floorplan, the Revel 44E. The floorplan features a rear Power Lift Bed with expansive gear garage below below, and all-in-one gear closet and wet bath, swivel cab seats that become an integral part of the Revel's living space and a well-appointed kitchen. Do not let the compact exterior length fool you, the Winnebago Revel is packed with amenities to comfortably take your Revel both off-road and off-grid.

Winnebago Revel 44E

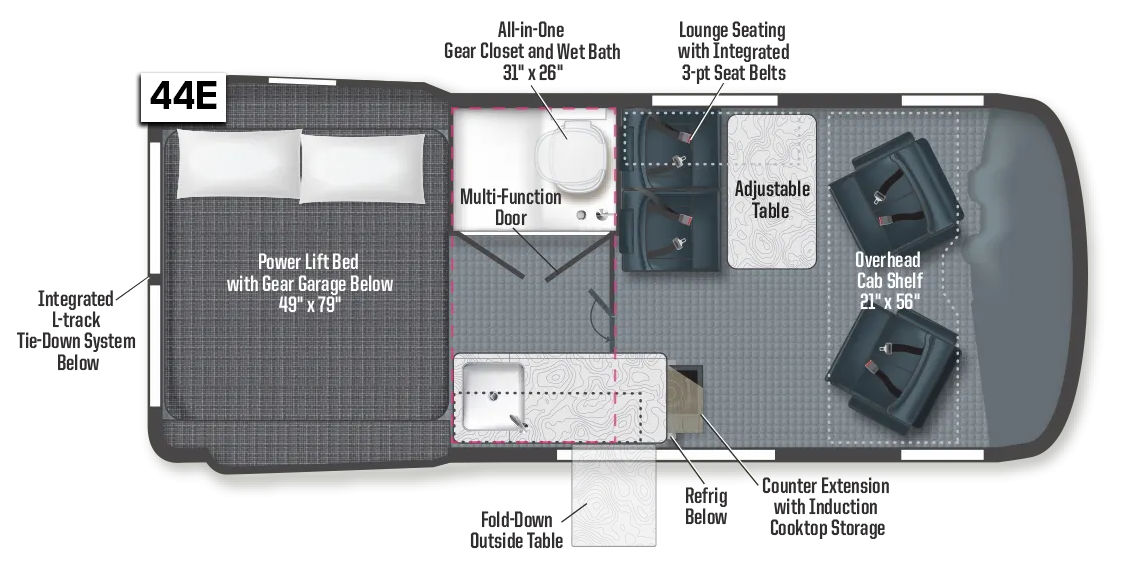

Winnebago Revel 44E Floorplan

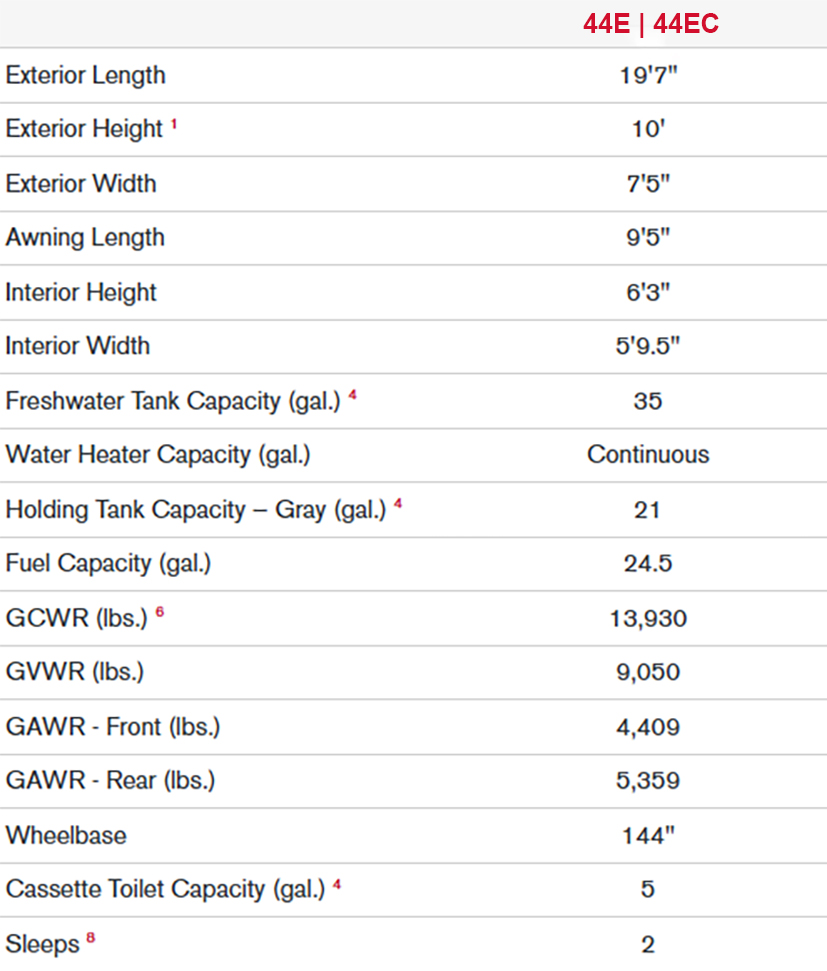

Winnebago Revel 44E Specifications


  • Mercedes-Benz® AWD Sprinter Chassis 2.0L high-output, turbo-diesel 4-cylinder, 9-speed automatic transmission with overdrive
  • 4-wheel ABS brakes
  • LED high performance headlamps
  • Trailer hitch 5,000-lb. drawbar/500-lb. Maximum vertical tongue weight
  • 7-pin trailer wiring harness connector
  • Spare tire
  • OPTIONAL: Customized performance wheels and BF
  • OPTIONAL: Goodrich® T/A® KO2 all-terrain tires

Cab Conveniences

  • MBUX® touchscreen multimedia infotainment system w/navigation, Wi-Fi hotspot, intelligent voice control, and rear camera
  • Mercedes me connect vehicle app
  • Cab seats w/single in-board armrest, adjustable lumbar support, adjustable headrest and slide, swivel and recline
  • Airbags driver and passenger
  • 3-point seat belts
  • DISTRONIC PLUS® (adaptive cruise control)
  • Power assist steering w/tilt and telescoping wheel
  • Power mirrors w/defrost and turn signals
  • Power door lock w/remote control
  • Power windows
  • 12-volt powerpoints
  • Sunvisors

Electrical System

  • Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort® service connection hatch
  • Automatic dual battery charge control
  • Exterior AC duplex
  • Exterior antenna jack
  • Generator auto transfer switch
  • Battery disconnect system (coach)
  • AC/DC load center/converter unit
  • 2 deep-cycle, Group 31 RV batteries
  • 3,600-watt Cummins Onan® MicroQuiet™ LP generator
  • 2,000-watt pure sine wave DC/AC inverter
  • (2) 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable solar panel
  • OPTIONAL: Lithium Ion Smart Batteries
  • OPTIONAL: 3,200-watt Cummins Onan® Diesel generator


  • LED ceiling lights
  • Tinted dual-pane euro acrylic windows w/cassette shades
  • Front overhead cabinet shelf (cab area)
  • Systems monitor panel
  • Deluxe powered ventilator fan w/rain cover
  • RAM® Tough-Track™ mounts throughout
  • Forward facing lounge seat w/two integrated 3-point seat belts w/forward, recline and slide adjustments
  • Adjustable, removable table w/storage behind lounge seat
  • Entry door assist handle w/Ram® Tough-Track™ mount
  • 110V, 12V, USB-A and USB-C charging ports
  • Roof wiring access port
  • Heavy duty vinyl flooring throughout
  • Below floor storage (lounge)
  • OPTIONAL: Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag


  • Laminate countertop
  • Portable single burner induction cooktop
  • Galley drawer w/counter extension base (induction cooktop storage)
  • 3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer
  • Stainless steel sink w/single control faucet and pull-out sprayer
  • Spice rack


  • Wet bath 31" x 26"
  • Shower w/wall surround
  • Bi-fold bath door w/privacy panel extension
  • (1) removable shelf
  • (2) collapsible storage containers
  • Dual control faucet w/flexible shower head
  • Removable clothes rod
  • Mirror
  • Powered roof vent
  • Robe hooks
  • Shower curtain
  • Tissue holder
  • Swiveling cassette toilet


  • Power lift bed w/WinnSleep® technology and molded pockets w/zip storage below
  • Under-bed gear garage storage w/strategically placed L-track tie downs
  • Powered roof vent w/rain cover (NA w/air conditioner)
  • (2) pocket storage nets
  • Reading lights


  • Side screen door w/magnetic closure
  • Rear screen door w/blackout panel
  • Rear ladder
  • Luggage rack w/front faring off-road lighting
  • Porch light w/interior switch
  • Driver side service light w/interior switch
  • Tubular running boards w/ground effect lighting and integrated pet leash attachment
  • Fold-down exterior table
  • Rear mud guards
  • Optional: Rack mounted powered patio awning w/Bluetooth® control

Heating Cooling System

  • Hydronic heating system w/multi-zone heating and LED touchscreen panel
  • Optional: 13,500 BTU air conditioner

Electrical System

  • AC/DC load center/converter
  • Auxiliary start circuit
  • Winnebago Power Max (7.5kWh Lithionics® lithiumion battery w/dual alternator charging capability, Bluetooth® control and pack heating system, Winnebago® x EcoFlow® Power Hub Pro (5-in-1 power management controller and touchscreen interface) and 220-watts of solar)
  • Coach battery disconnect system
  • Automatic dual-battery charge control
  • 30-amp. power cord
  • Optional: (1) additional 7.5kWh Lithionics® lithium-ion battery

Plumbing System

  • Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door)
  • 10' sewer hose
  • On-demand water pump
  • Heated gray water holding tank (below floor)
  • Heated freshwater holding tank
  • Galley drain pump
  • Winterization package w/labeled valves, courtesy lights and siphon tube


  • LP, smoke, and carbon monoxide detectors
  • Fire extinguisher
  • Ground fault interrupter


  • 12-month/24,000-mile basic warranty *See your dealer for complete warranty information.

Optional Package Upgrades

  • Interior Package Upgrade includes Overlander interior decor, removable Chilewich® floor mats (cab and coach) and insulated window coverings
